Using swag (from swaggo) to generating Swagger/OpenAPI documentation in your Go project

Install swag CLI tool (Only first time / Update Version)

• Install swag CLI tool with this command

go install github.com/swaggo/swag/cmd/swag@latest

• Test generates a sample document. Run this command in the root directory of your Go project, where your main.go

swag init

• if your main.go not located and root directory but located in [ROOT_PATH]/cmd/api/main.go you can use -g option to specify main.go location

swag init -g "cmd/api/main.go"

• result is an empty swagger doc

Add swag tag/annotation to your Go code

There are 2 locations

• main.go Example

// @title           Calc EOD API
// @version         1.0
// @description     This is the API documentation for the  Calc EOD project.
// @termsOfService  http://swagger.io/terms/

// @contact.name   API Support
// @contact.url    http://www.example.com/support
// @contact.email  [email protected]

// @license.name  MIT
// @license.url   https://opensource.org/licenses/MIT

// @host      localhost:3000
// @BasePath  /
// @securityDefinitions.apiKey ApiKeyAuth
// @in header
// @name Authorization

// @schemes   http
func main() {
   ... your logic
}

• your handler function Example

// Login handles user login requests.
// @Summary      Login user
// @Description  Authenticate user and return JWT token
// @Tags         auth
// @Accept       json
// @Produce      json
// @Param        request  body      entities.LoginRequest  true  "Login Request"
// @Success      200      {object}  entities.LoginResponse
// @Failure      400      {object}  map[string]string
// @Failure      401      {object}  map[string]string
// @Router       /auth/login [post]
func (h *AuthHandler) Login(c *fiber.Ctx) error {
	var request entities.LoginRequest
	if err := c.BodyParser(&request); err != nil {
		return c.Status(fiber.StatusBadRequest).JSON(fiber.Map{
			"error": "Invalid request body",
		})
	}

	if err := utils.ValidateStruct(&request); err != nil {
		return c.Status(fiber.StatusBadRequest).JSON(fiber.Map{
			"error":   "Validation failed",
			"details": err.Error(),
		})
	}

	response, err := h.authService.Login(&request)
	if err != nil {
		return c.Status(fiber.StatusUnauthorized).JSON(fiber.Map{
			"error": "Invalid email or password",
		})
	}

	return c.Status(fiber.StatusOK).JSON(response)
}

// RefreshToken handles token refresh requests.
// @Summary      Refresh JWT token
// @Description  Refresh an expired JWT token
// @Tags         auth
// @Accept       json
// @Produce      json
// @Param        Authorization  header    string  true  "JWT Token"
// @Success      200           {object}  map[string]string
// @Failure      401           {object}  map[string]string
// @Router       /auth/refresh-token [post]
func (h *AuthHandler) RefreshToken(c *fiber.Ctx) error {
	token := c.Get("Authorization")
	if token == "" {
		return c.Status(fiber.StatusUnauthorized).JSON(fiber.Map{
			"error": "Missing authorization token",
		})
	}

	newToken, err := h.authService.RefreshToken(token)
	if err != nil {
		return c.Status(fiber.StatusUnauthorized).JSON(fiber.Map{
			"error": "Invalid or expired token",
		})
	}

	return c.Status(fiber.StatusOK).JSON(fiber.Map{
		"token": newToken,
	})
}

Note: you can use AI to help generate swag tag/annotation to your Go code. My prompt "I want you to add Swagger annotations to handler functions and select file auth_handler.go" in my Git Copilot Console

Update Doc Again

• run init command

swag init
#or main.go not located and root directory such as cmd/api/main.go
swag init -g "cmd/api/main.go"

Add Swagger UI to your project

Install the middleware for your web framework (for example, gin):

• gin

go get -u github.com/swaggo/gin-swagger
go get -u github.com/swaggo/files

import (
    "github.com/gin-gonic/gin"
    "github.com/swaggo/gin-swagger"
    "github.com/swaggo/files"
    _ "your/project/docs" // docs is generated by Swag CLI, you have to import it.
)

func main() {
    r := gin.Default()
    // ...
    r.GET("/swagger/*any", ginSwagger.WrapHandler(swaggerFiles.Handler))
    r.Run()
}

• fiber

go get github.com/gofiber/swagger

import (
    "github.com/gofiber/fiber/v2"
    "github.com/gofiber/swagger"
    _ "your/module/docs" // replace with your module path
)

func main() {
    app := fiber.New()

    // Swagger route
    app.Get("/swagger/*", swagger.HandlerDefault) // default route

    // Your other routes...

    app.Listen(":8080")
}

• echo

go get github.com/swaggo/echo-swagger

import (
    "github.com/labstack/echo/v4"
    echoSwagger "github.com/swaggo/echo-swagger"
    _ "your/module/docs" // replace with your module path
)

func main() {
    e := echo.New()

    // Swagger route
    e.GET("/swagger/*", echoSwagger.WrapHandler)

    // Your other routes...

    e.Logger.Fatal(e.Start(":8080"))
}

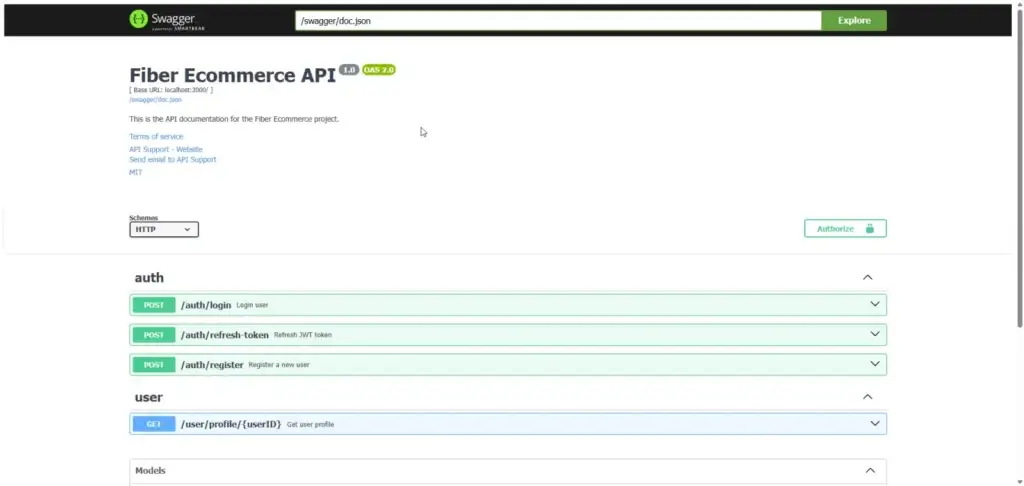

And access your swagger doc via [YOUR_BASE_PATH]/swagger/index.html, the image below is Go fiber example

Reference

• https://github.com/swaggo/swag
