แก้ไขไฟล์ controlplane.yaml เพื่อ Fixed IP และทำ DNS ที่ extraHostEntries
machine:
network:
hostname: talos-controlpane-0
interfaces:
- interface: enxbc24113fdb31 # The interface name - System Generate ตอน Start VM
addresses:
- 192.168.1.220/24
routes:
- network: 0.0.0.0/0 # The route's network.
gateway: 192.168.0.1 # The route's gateway.
dhcp: true
nameservers:
- 192.168.0.1
- 8.8.4.4
- 8.8.8.8
- 1.1.1.1
extraHostEntries:
- ip: 192.168.1.220 # The IP of the host.
# The host alias.
aliases:
- talos-controlpane-0
- ip: 192.168.1.221 # The IP of the host.
# The host alias.
aliases:
- talos-worker-0

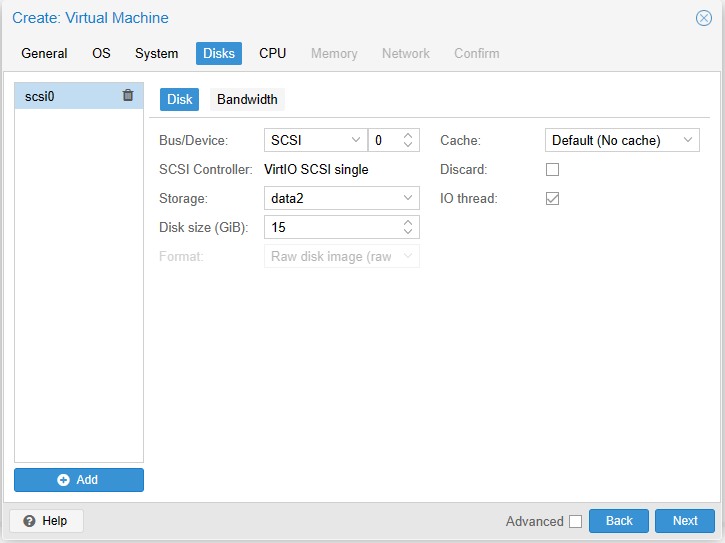

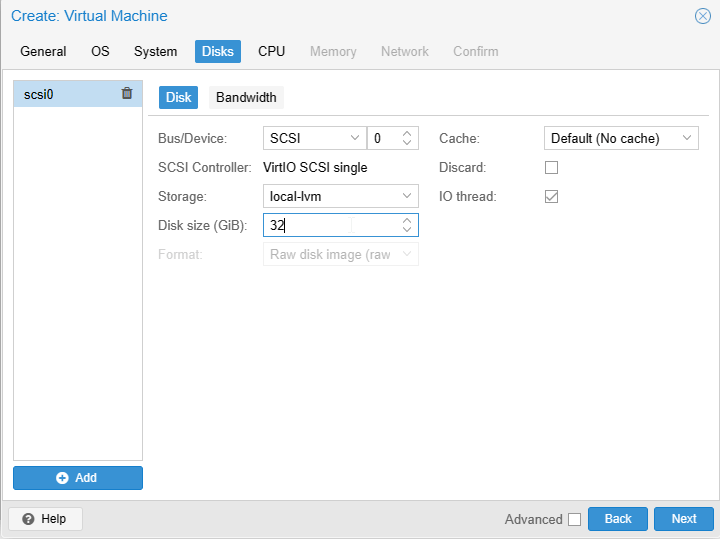

Note พวก disk จะ default ที่ /dev/sda ต้องมาแก้ให้เรียบร้อยก่อน Apply ครับ

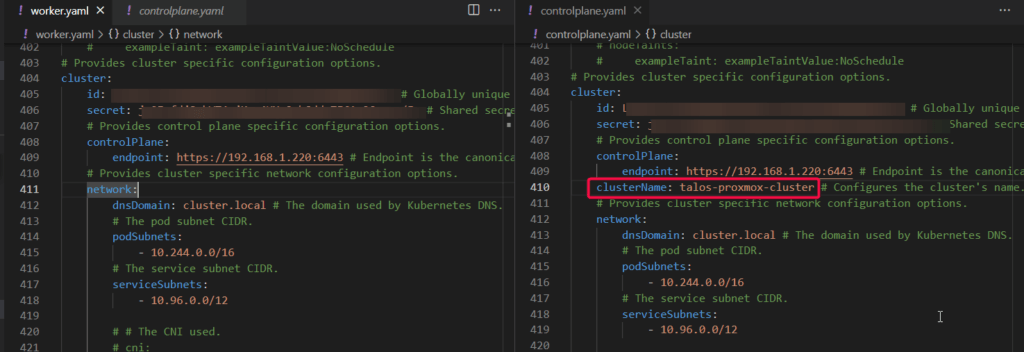

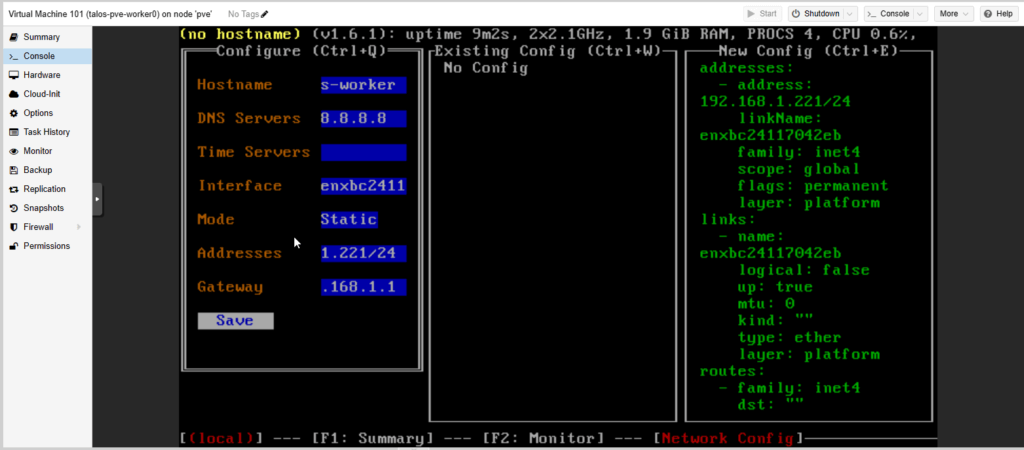

แก้ไขไฟล์ worker.yaml เพื่อ Fixed IP และทำ DNS ที่ extraHostEntries
network:
# `interfaces` is used to define the network interface configuration.
hostname: talos-controlpane-0
interfaces:
- interface: enxbc24113fdb31 # The interface name.
# Assigns static IP addresses to the interface.
addresses:
- 192.168.1.220/24
# A list of routes associated with the interface.
routes:
- network: 0.0.0.0/0 # The route's network (destination).
gateway: 192.168.1.1 # The route's gateway (if empty, creates link scope route).
metric: 1024 # The optional metric for the route.
mtu: 1500 # The interface's MTU.
#Used to statically set the nameservers for the machine.
nameservers:
- 8.8.8.8
- 1.1.1.1
- 192.168.1.1
- 8.8.4.4
# Allows for extra entries to be added to the `/etc/hosts` file
extraHostEntries:
- ip: 192.168.1.220 # The IP of the host.
# The host alias.
aliases:
- talos-controlpane-0
- ip: 192.168.1.221 # The IP of the host.
# The host alias.
aliases:
- talos-worker-0
kubectl apply -f testnginx.yaml
===========================
namespace/test-talos created
Warning: would violate PodSecurity "restricted:latest": allowPrivilegeEscalation != false (container "nginx" must set securityContext.allowPrivilegeEscalation=false), unrestricted capabilities (container "nginx" must set securityContext.capabilities.drop=["ALL"]), runAsNonRoot != true (pod or container "nginx" must set securityContext.runAsNonRoot=true), seccompProfile (pod or container "nginx" must set securityContext.seccompProfile.type to "RuntimeDefault" or "Localhost")
deployment.apps/nginx-deployment created

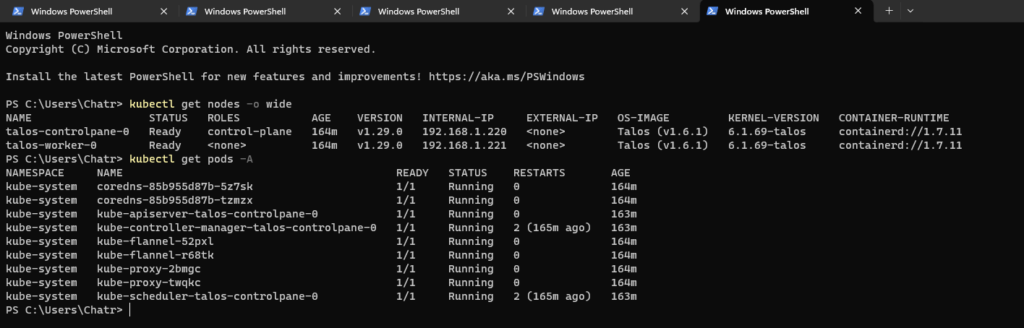

ตรวจสอบ
Get Pod
kubectl get pod -n test-talos
===========================
NAME READY STATUS RESTARTS AGE
nginx-deployment-7c79c4bf97-c6fx6 1/1 Running 0 46s
nginx-deployment-7c79c4bf97-gs9sj 1/1 Running 0 46s
kubectl get svc -n test-talos
===========================
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
nginx-deployment NodePort 10.104.142.124 <none> 80:32740/TCP 43s
