How To Create COM DLL (.tlb) In .NET 4.x For Reference In VB6 –

Recently, I've been working on a Helper (COM DLL (.tlb) in .NET 4.x for reference in VB6) to assist with the parallel migration from VB6 to .NET Framework. The issue that might arise is having to maintain the Business Logic in two places. So I design & implement a parallel approach, by default, VB6 will call the Business Logic in .NET Framework. If there are any problems, I can turn off the Feature Flag and use the VB logic instead.

For using create COM DLL (.tlb) in .NET 4.x for reference in VB6, the steps are as follows

Add Reference to ADODB

In this step, I want to use a recordset asa Data Structure for VB6 Side, such as converting JSON (1 Level Deep) from WebAPI and converting it into a recordset format that VB6 can access. the Add Reference to ADODB

Right-click your project in Visual Studio > Add > Reference.
Go to the COM tab.
Find and select Microsoft ActiveX Data Objects 2.x Library (usually 2.8 is available).
Click OK.

Sample usage ADODB Namespace

Connect DB, but I not user for this scenario I prefer use ADODB.NET with EF Or Dapper for best performance

using ADODB;

Connection conn = new Connection();
Recordset rs = new Recordset();

conn.Open("Provider=SQLOLEDB;Data Source=SERVER;Initial Catalog=DB;User Id=USER;Password=PWD;", "", "", 0);
rs.Open("SELECT * FROM MyTable", conn, CursorTypeEnum.adOpenStatic, LockTypeEnum.adLockReadOnly, -1);

while (!rs.EOF)
{
    Console.WriteLine(rs.Fields["ColumnName"].Value);
    rs.MoveNext();
}

rs.Close();
conn.Close();

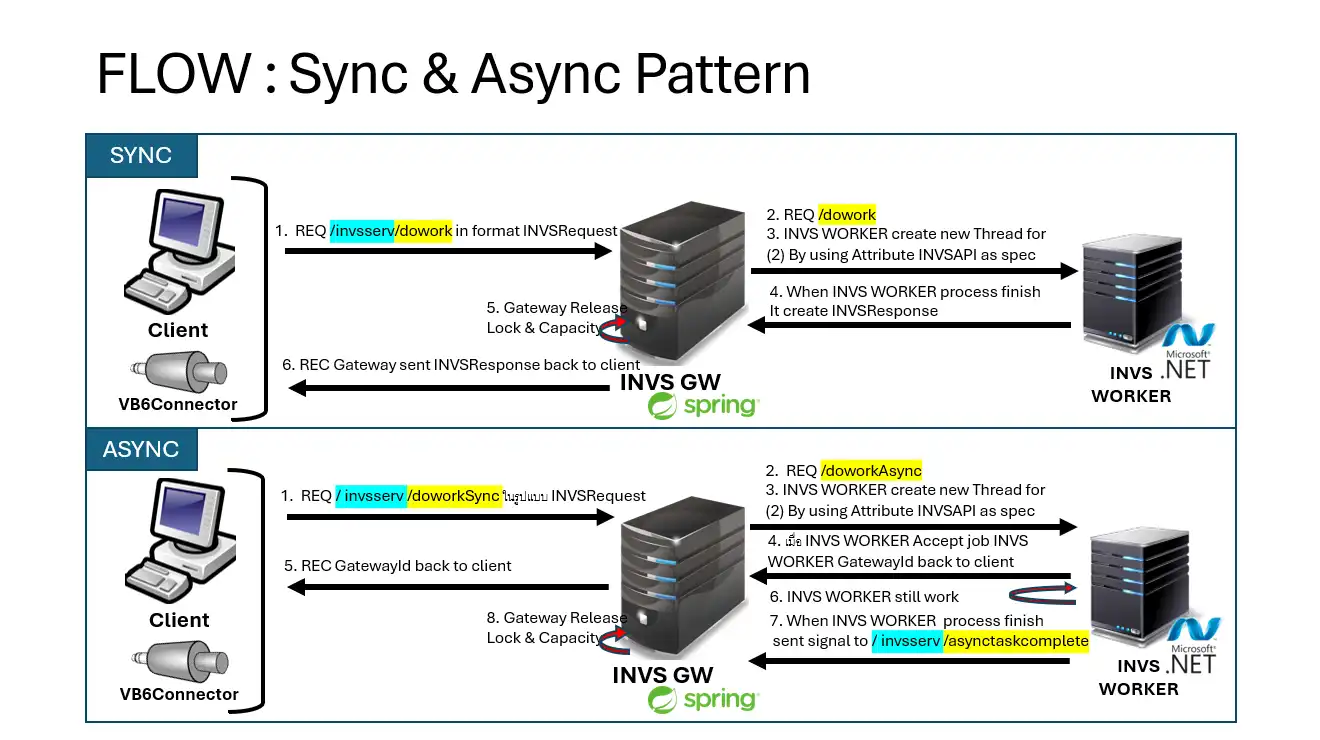

My Scenario: Use this COM DLL as a VB6 connector to a web service

In my scenario, I want to connect VB6 / NET Framework Client to Process Something On Web Service this design can add-on many thing such as jwt / oauth flow

I will focus on VB6Connector - create a request by storing value in 2 format String / json

String

DATE | 2018-07-31;
LIST<INT> | 1147,1148,1149,1150,1151,1152,1153,1154,1155,1156;
INT| 18;
INT| 1;
BOOL| true;"

json

{
  "invsConfig": {
    "GATEWAY_WEBROOT": "192.168.0.180:10600/",
    "GATEWAY_PREFIX": null,
    "GATEWAY_HTTPS": false,
    "VBSERVERPATH": "C:\\invs_data\\"
  },
  "targetService": {
    "ObjectId": "1209900",
    "TargetServiceName": "RebalanceEqProcessService",
    "TargetMethodName": "ProcessRebalanceAPI",
    "TargetParam": [
      {
        "DATE": "2018-07-31"
      },
      {
        "LIST<INT>": [1147, 1148, 1149, 1150, 1151, 1152, 1153, 1154, 1155, 1156]
      },
      {
        "INT": 18
      },
      {
        "INT": 1
      },
      {
        "BOOL": true
      }
    ]
  }
}

And then call Web Service (Spring Boot / ASP WebAPI to process from client request. You can see my sample code below

this helper will convert json result to ADODB.Recordset for VB6

using System;
using System.Collections.Generic;
using System.Data;
using System.Data.Common;
using System.Linq;
using System.Reflection;
using System.Text;
using System.Threading.Tasks;

namespace invs.vb6connector.common
{
    public class ConvertNetTypetoVB6TypeHelper
    {
        public static DataTable CreateDataTable<T>(IEnumerable<T> list)
        {
            Type type = typeof(T);
            var properties = type.GetProperties();

            DataTable dataTable = new DataTable();
            foreach (PropertyInfo info in properties)
            {
                dataTable.Columns.Add(new DataColumn(info.Name, Nullable.GetUnderlyingType(info.PropertyType) ?? info.PropertyType));
            }

            foreach (T entity in list)
            {
                object[] values = new object[properties.Length];
                for (int i = 0; i < properties.Length; i++)
                {
                    values[i] = properties[i].GetValue(entity);
                }

                dataTable.Rows.Add(values);
            }

            return dataTable;
        }

        public static ADODB.Recordset ConvertToRecordset(DataTable inTable)
        {
            ADODB.Recordset result = new ADODB.Recordset();
            if (inTable.Rows.Count != 0)
            {
                result.CursorLocation = ADODB.CursorLocationEnum.adUseClient;

                ADODB.Fields resultFields = result.Fields;
                System.Data.DataColumnCollection inColumns = inTable.Columns;

                foreach (DataColumn inColumn in inColumns)
                {
                    resultFields.Append(inColumn.ColumnName
                        , TranslateType(inColumn.DataType)
                        , inColumn.MaxLength
                        , inColumn.AllowDBNull ? ADODB.FieldAttributeEnum.adFldIsNullable :
                                                 ADODB.FieldAttributeEnum.adFldUnspecified
                        , null);
                }

                result.Open(System.Reflection.Missing.Value
                        , System.Reflection.Missing.Value
                        , ADODB.CursorTypeEnum.adOpenStatic
                        , ADODB.LockTypeEnum.adLockOptimistic, 0);

                foreach (DataRow dr in inTable.Rows)
                {
                    result.AddNew(System.Reflection.Missing.Value,
                                  System.Reflection.Missing.Value);

                    for (int columnIndex = 0; columnIndex < inColumns.Count; columnIndex++)
                    {
                        resultFields[columnIndex].Value = dr[columnIndex];
                    }
                }
            }

            return result;
        }

        private static ADODB.DataTypeEnum TranslateType(Type columnType)
        {
            switch (columnType.UnderlyingSystemType.ToString())
            {
                case "System.Boolean":
                    return ADODB.DataTypeEnum.adBoolean;
                case "System.Byte":
                    return ADODB.DataTypeEnum.adUnsignedTinyInt;
                case "System.Char":
                    return ADODB.DataTypeEnum.adChar;
                case "System.DateTime":
                    return ADODB.DataTypeEnum.adDate;
                case "System.Decimal":
                    return ADODB.DataTypeEnum.adCurrency;
                case "System.Double":
                    return ADODB.DataTypeEnum.adDouble;
                case "System.Int16":
                    return ADODB.DataTypeEnum.adSmallInt;
                case "System.Int32":
                    return ADODB.DataTypeEnum.adInteger;
                case "System.Int64":
                    return ADODB.DataTypeEnum.adBigInt;
                case "System.SByte":
                    return ADODB.DataTypeEnum.adTinyInt;
                case "System.Single":
                    return ADODB.DataTypeEnum.adSingle;
                case "System.UInt16":
                    return ADODB.DataTypeEnum.adUnsignedSmallInt;
                case "System.UInt32":
                    return ADODB.DataTypeEnum.adUnsignedInt;
                case "System.UInt64":
                    return ADODB.DataTypeEnum.adUnsignedBigInt;
                case "System.String":
                    return ADODB.DataTypeEnum.adVarChar;
                default:
                    return ADODB.DataTypeEnum.adVarChar;
            }
        }

        public static DataTable ConvertToDataTable(ADODB.Recordset pRecordset)
        {
            System.Data.OleDb.OleDbDataAdapter adapter = new System.Data.OleDb.OleDbDataAdapter();
            DataTable dt = new DataTable();
            adapter.Fill(dt, pRecordset);
            return dt;
        }

        public static Dictionary<string, string> GetDict(DataTable dt)
        {

            Dictionary<string, string> dicConfig = new Dictionary<string, string>();
            foreach (DataRow row in dt.Rows)
            {
                dicConfig = Enumerable.Range(0, dt.Columns.Count).ToDictionary(i => dt.Columns[i].ColumnName, i => row.ItemArray[i].ToString());
            }
            return dicConfig;
        }

        //http://www.nullskull.com/q/10057748/hi-all.aspx

        #region Converting ObjectArray to Datatable
        public static DataTable ConvertToDataTable(Object[] array)
        {
            PropertyInfo[] properties = array.GetType().GetElementType().GetProperties();
            DataTable dt = CreateDataTable(properties);
            if (array.Length != 0)
            {
                foreach (object o in array)
                    FillData(properties, dt, o);
            }
            return dt;
        }

        private static DataTable CreateDataTable(PropertyInfo[] properties)

        {
            DataTable dt = new DataTable();
            DataColumn dc = null;
            foreach (PropertyInfo pi in properties)
            {
                dc = new DataColumn();
                dc.ColumnName = pi.Name;
                dc.DataType = pi.PropertyType;
                dt.Columns.Add(dc);
            }
            return dt;
        }

        private static void FillData(PropertyInfo[] properties, DataTable dt, Object o)
        {
            DataRow dr = dt.NewRow();
            foreach (PropertyInfo pi in properties)
            {
                dr[pi.Name] = pi.GetValue(o, null);
            }
            dt.Rows.Add(dr);
        }
        #endregion
    }
}

Sample Code /dowork endpoint

public ADODB.Recordset Execute(int pHeadMemberId
                             , String pHeadMemberName
                             , String pHeadIdentifier
                             , int pServiceId
                             , string pTargetServiceName
                             , string pTargetMethodName
                             , string pTemplateRequest = null)
{
	try
	{
		InitializeConfig(this._LogPath, "Execute");

		//Gettoken
		object[] RequestParam = pTemplateRequest == null ? new object[] { } : CreateObjectRequestforTemplate(pTemplateRequest);
		invsTaskRequest request = ReformatHelper.CreateMessageWithHeader(pHeadMemberId, pHeadMemberName, pHeadIdentifier, pServiceId, pTargetServiceName, pTargetMethodName, RequestParam, invs.Common.Const.BODYTYPE_CONST.JSON);

		if (request.ParamClz == null)
		{
			request.ParamClz = "";
			request.ParamObj = new string[] { };
		}

		string functionurl = (this._TargetURL.Contains("invs-gateway-web-app") ? "invsserv/dowork" : "/gw/invsserv/dowork");

		Dictionary<string, object> headers = new Dictionary<string, object>();
		string password = (_PassWord == "" || _PassWord == null) ? pHeadMemberName : _PassWord;
		string accessToken = GetToken(pHeadMemberName, password);

		if (accessToken != null)
			headers.Add("Authorization", "Bearer " + accessToken);

		headers.Add(RestHelper.HEADER_CONTENTTYPE, "application/json");
		_logger.Info("Execute Dowork : " + this._TargetURL + functionurl + " " + pTargetServiceName + "." + pTargetMethodName);
		_logger.Debug("Template Request : " + pTemplateRequest);

		invsTaskResponse response = invsJsonHelper.DeserializeObject<invsTaskResponse>(RestHelper.Restful(this._TargetURL, functionurl, "POST", request, this._IsHttps, headers));

		if (!String.IsNullOrWhiteSpace(response.Error))
		{
			_logger.Error(response.Error);
			throw new VB6ConnectorException(-1234567890, response.Error);
		}

		DataTable ds = GetDataTableFromJsonString(response.ResultObj.ToString());
		_logger.Debug("Dowork : Complete");
		return ConvertNetTypetoVB6TypeHelper.ConvertToRecordset(ds);
	}
	catch (Exception Ex)
	{
		_logger.Error(Ex);
		throw new VB6ConnectorException(Ex);
	}
}

Sample Code /doworkasync endpoint

public ADODB.Recordset ExecuteAsync(int pHeadMemberId
                                  , String pHeadMemberName
                                  , String pHeadIdentifier
                                  , int pServiceId
                                  , string pTargetServiceName
                                  , string pTargetMethodName
                                  , string pTemplateRequest = null)
{
	try
	{
		InitializeConfig(this._LogPath, "Executeasync");

		object[] RequestParam = CreateObjectRequestforTemplate(pTemplateRequest);
		invsTaskRequest request = ReformatHelper.CreateMessageWithHeader(pHeadMemberId, pHeadMemberName, pHeadIdentifier, pServiceId, pTargetServiceName, pTargetMethodName, RequestParam, invs.Common.Const.BODYTYPE_CONST.JSON);

		string functionurl = (this._TargetURL.Contains("invs-gateway-web-app") ? "invsserv/doworkasync" : "/gw/invsserv/doworkasync");

		Dictionary<string, object> headers = new Dictionary<string, object>();
		string password = (_PassWord == "" || _PassWord == null) ? pHeadMemberName : _PassWord;
		string accessToken = GetToken(pHeadMemberName, password); //Password Not Encrypt

		if (accessToken != null) headers.Add("Authorization", "Bearer " + accessToken);
			headers.Add(RestHelper.HEADER_CONTENTTYPE, "application/json");

			_logger.Info("Execute Doworkasync : " + this._TargetURL + functionurl + " " + pTargetServiceName + "." + pTargetMethodName);
			_logger.Debug("Template Request : " + pTemplateRequest);

			invsTaskResponse response = invsJsonHelper.DeserializeObject<invsTaskResponse>(RestHelper.Restful(this._TargetURL, functionurl, "POST", request, this._IsHttps, headers));

			if (!String.IsNullOrWhiteSpace(response.Error))
            {
				_logger.Error(response.Error);
				throw new VB6ConnectorException(-1234567890, response.Error);
			}

			DataTable ds = GetDataTableFromJsonString(response.ResultObj.ToString());
			_logger.Debug("doworkasync : Compleate");
			return ConvertNetTypetoVB6TypeHelper.ConvertToRecordset(ds);
	}
	catch (Exception Ex)
	{
		_logger.Error(Ex);
		throw new VB6ConnectorException(Ex);
	}
}

Sample Code that receive json parameter

public ADODB.Recordset ExecutebyJSON(String pJSONRequest)
{
    VB6RequestObjectDTO JSONRequest = JsonConvert.DeserializeObject<VB6RequestObjectDTO>(pJSONRequest);
    try
    {
        InitializeConfig(GetLogFileNamewithPath(JSONRequest.invsConfig.VBSERVERPATH), "ExecutebyJSON");

        var param = ConvertDynamicRequest(JSONRequest.targetService.TargetParam);
        object[] RequestParam = CreateObjectRequestforJSONTemplate(param);
        invsTaskRequest request = ReformatHelper.CreateMessageWithHeader(JSONRequest.targetService.MemberId																   , JSONRequest.targetService.MemberName																   , JSONRequest.targetService.Identifier															   , JSONRequest.targetService.ObjectId																   , JSONRequest.targetService.TargetServiceName																   , JSONRequest.targetService.TargetMethodName																   , RequestParam																   , invs.Common.Const.BODYTYPE_CONST.JSON);

        string functionurl = (this._TargetURL.Contains("invs-gateway-web-app") ? "invsserv/dowork" : "/gw/invsserv/dowork");

        Dictionary<string, object> headers = new Dictionary<string, object>();
        string accessToken = GetToken(JSONRequest.targetService.MemberName, JSONRequest.targetService.MemberName);
        if (accessToken != null) headers.Add("Authorization", "Bearer " + accessToken);
        headers.Add(RestHelper.HEADER_CONTENTTYPE, "application/json");
        invsTaskResponse response = invsJsonHelper.DeserializeObject<invsTaskResponse>(RestHelper.Restful(JSONRequest.invsConfig.GATEWAY_WEBROOT																									, functionurl																									, "POST"																									, request																									, JSONRequest.invsConfig.GATEWAY_HTTPS, headers));

        if (!String.IsNullOrWhiteSpace(response.Error))
        {
            throw new VB6ConnectorException(-1234567890, response.Error);
        }

        DataTable ds = GetDataTableFromJsonString(response.ResultObj.ToString());

        return ConvertNetTypetoVB6TypeHelper.ConvertToRecordset(ds);
    }
    catch (Exception Ex)
    {
        throw new VB6ConnectorException(Ex);
    }
}

invsTaskRequest / invsTaskResponse are intermediate classes used to standardize the sending and receiving of data for all APIs to have the same format, where:
- invsTaskRequest specifies which Service to execute with which method and what parameters
- invsTaskResponse stores the results obtained from that Service, or stores an Id to retrieve from Cache
Covert JSON to DataTable

public DataTable GetDataTableFromJsonString(string json)
{
    JToken token = JToken.Parse(json);

    if (token is JArray)
    {
        var jArrray = JArray.Parse(json);

        // Find the first array using Linq
        //var srcArray = jsonLinq.Descendants().Where(d => d is JArray).First();
        var trgArray = new JArray();
        foreach (JObject row in jArrray.Children<JObject>())
        {
            var cleanRow = new JObject();
            foreach (JProperty column in row.Properties())
            {
                // Only include JValue types
                //พวกที่เป็น Array จะถูกเอาออกไปได้
                if (column.Value is JValue)
                {
                    cleanRow.Add(column.Name, CheckDate((string)column.Value));
                }
            }

            trgArray.Add(cleanRow);
        }

        return (DataTable)JsonConvert.DeserializeObject(trgArray.ToString(), typeof(DataTable));
    }
    else if (token is JObject)
    {
        var jObject = JObject.Parse(json);
        var cleanRow = new JObject();
        var trgArray = new JArray();
        foreach (JProperty column in jObject.Properties())
        {
            // Only include JValue types
            //พวกที่เป็น Array จะถูกเอาออกไปได้
            if (column.Value is JValue)
            {

                cleanRow.Add(column.Name, column.Value);
            }
        }
        trgArray.Add(cleanRow);
        return (DataTable)JsonConvert.DeserializeObject(trgArray.ToString(), typeof(DataTable));

    }
    else if (token.Type == JTokenType.Integer)
    {
        //Convert to int
        DataTable temp = new DataTable();
        temp.Columns.Add("Result", typeof(string));
        temp.Rows.Add(token.Values());
        return temp;
    }
    else
    {
        throw new NotImplementedException("JSON not support");
    }

}

Next Convert DataTable to ADODB.RecordSet in ConvertNetTypetoVB6TypeHelper

Note: I cannot share all the information because this is my real work.

Project Setting

Add RegisterForComInterop in csproj file

<RegisterForComInterop>true</RegisterForComInterop>

In AssemblyInfo.cs add ComVisible and check Guid has generated

// COM, set the ComVisible attribute to true on that type.
[assembly: ComVisible(true)]

// The following GUID is for the ID of the typelib if this project is exposed to COM
[assembly: Guid("57b6cf0c-81bc-48bd-9c81-2846eea09a2a")]

Create .tlb file for VB6 to Register

- Register

CMD Run As Administrator
Change Directory to Path C:\Windows\Microsoft.NET\Framework\v4.0.30319
Run command RegAsm.exe [PATH TO DLL]\[YOUR_DOTNET_COM].dll /register /tlb /codebase

RegAsm.exe C:\Users\chatri.ngam\Desktop\VB6TestConnector\DLL\invs.vb6connector.dll /register /tlb /codebase

For VB6 Project when register process form (3) is complete, you can use file .tlb such as invs.vb6connector.dll for Reference in your VB6 code base

- Unregister

CMD Run As Administrator
Change Directory to Path C:\Windows\Microsoft.NET\Framework\v4.0.30319
Run command RegAsm.exe [PATH TO DLL]\[YOUR_DOTNET_COM].dll /unregister

Reference

Exposing .NET components to COM

Discover more from naiwaen@DebuggingSoft

Subscribe to get the latest posts sent to your email.

How to Create COM DLL (.tlb) in .NET 4.x for reference in VB6

Add Reference to ADODB

Sample usage ADODB Namespace

My Scenario: Use this COM DLL as a VB6 connector to a web service

Project Setting

Create .tlb file for VB6 to Register

- Register

- Unregister

Reference

Like this:

Related

Discover more from naiwaen@DebuggingSoft

Add Reference to ADODB

Sample usage ADODB Namespace

My Scenario: Use this COM DLL as a VB6 connector to a web service

Project Setting

Create .tlb file for VB6 to Register

- Register

- Unregister

Reference

Share this:

Like this:

Related

Discover more from naiwaen@DebuggingSoft

Related Posts

[IBM][DB2.NET] SQL0902 An unexpected exception has occurred in Process: … There are no context policies. Function: AESEncryptADONET

อยู่ๆ Test Report จาก dotnet test ก็หาย

Back to Basic: Fundamental Data Structure in C# (English Version)
